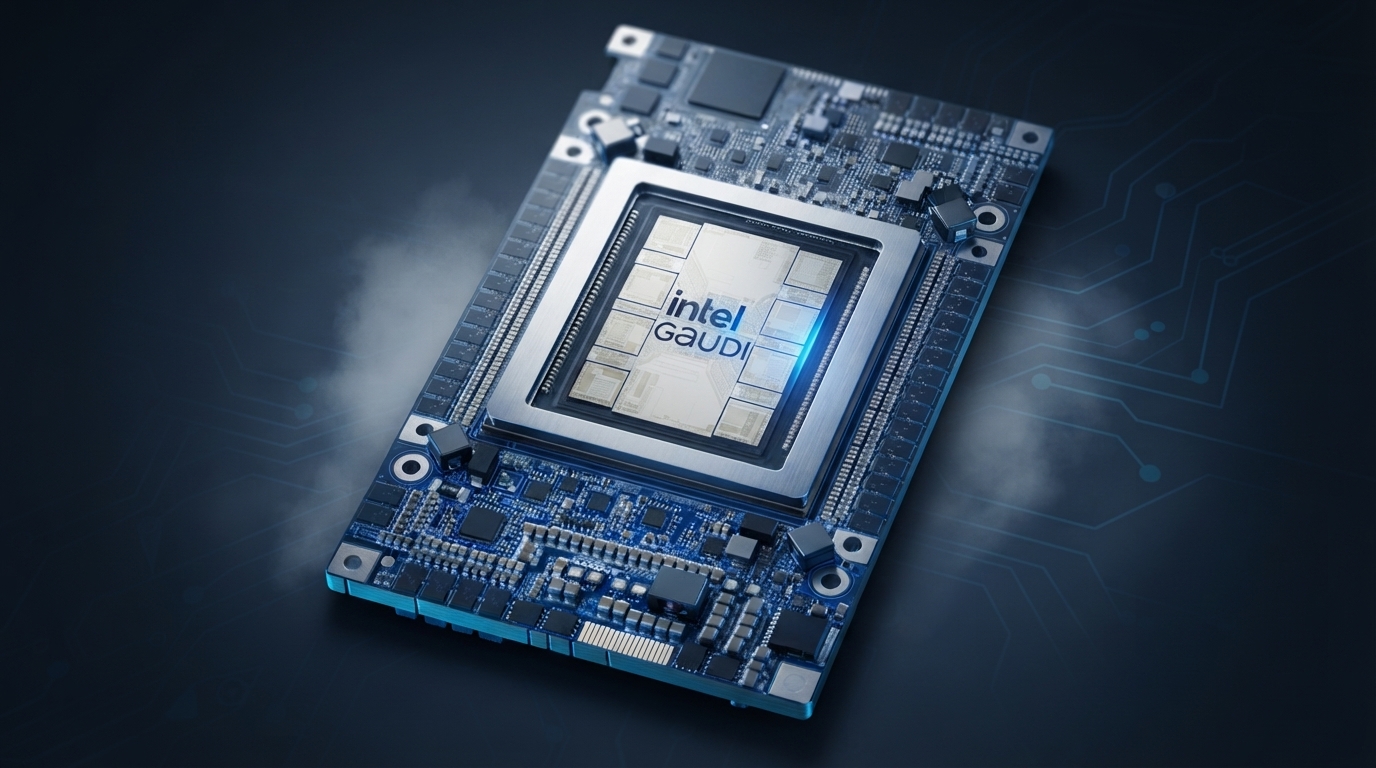

High-bandwidth memory (HBM) and fan-out wafer-level packaging (FOWLP) are not competing alternatives in AI accelerator design—they solve different problems at different levels of the stack. HBM is a 3D-stacked memory component whose vertical DRAM architecture and through-silicon vias (TSVs) exist to break the memory bandwidth wall. FOWLP is a substrate-less integration platform that lowers package cost and profile while enabling heterogeneous die integration. A hardware engineer who treats them as an either/or choice will mis-frame the design decision; the real question is which constraint—raw bandwidth or cost, form factor, and I/O flexibility—dominates the system.
The AI Accelerator Packaging Imperative: Bandwidth and Thermal Challenges
AI workloads are data-intensive, and the packaging around the accelerator die has become as decisive as the silicon itself. As one IEEE-published analysis of heterogeneous integration notes, HBM has become the main memory type chosen to meet required bandwidth performance in data-center and 5G contexts, and its integration with logic dies demands system-level heterogeneous integration within a single package to maximize performance.
The physical consequences of that integration are not free. Writing in Thermo Fisher's semiconductor blog, Vinay S and Dr. Adam Stokes describe how 2.5D silicon interposers, 3D integration with TSVs, FOWLP, chiplet-based integration, and hybrid bonding now combine logic, memory, and specialized dies in one package. For AI accelerators and high-performance computing devices, HBM stacks interconnected with fine-pitch microbumps and TSVs deliver the bandwidth data-intensive workloads demand—but that dense integration dramatically increases interconnect density and mechanical stress within the package. Bandwidth and thermal-mechanical stress are therefore two sides of the same packaging decision.
High-Bandwidth Memory (HBM): The 3D Stacking Solution for Bandwidth
HBM's architecture is best understood as a bandwidth machine. Applied Materials describes it as a vertical stack of DRAM dies placed beside a processor on a silicon interposer, whose fine wiring connects the two. The mechanism matters: by integrating processors, memory, and other chiplets within a tightly interconnected package, the distance data must travel is dramatically reduced—enabling the massive data throughput AI workloads require.
The through-silicon via is the enabling structure. TSVs run vertically through each DRAM die in the stack, so the memory's interface connections do not have to route around the stack to a conventional substrate edge. The Thermo Fisher authors identify HBM stacks with fine-pitch microbumps and TSVs as the specific configuration that delivers required bandwidth for AI accelerators and HPC devices. The trade-off is inherent to the geometry: stacking dies increases interconnect density and mechanical stress in the package, and the silicon interposer that connects HBM to the processor is itself a costly fabrication element. The IEEE analysis likewise notes that HBM integration on 2.5D silicon-in-package platforms with silicon interposers carries a rather high fabrication cost.
Fan-Out Wafer-Level Packaging (FOWLP): An Integration Platform for Cost and Form Factor
FOWLP takes the opposite architectural direction: instead of adding layers—a memory stack on an interposer—it removes them. DNN Technology's advanced packaging guide describes how FOWLP eliminates both the traditional laminate substrate and the silicon interposer, achieving a significantly thinner package profile and lower material cost. The die contacts the molding compound directly, and that molding compound acts as an efficient heat spreader, giving the approach excellent electrical and thermal performance.
The result, per DNN Technology, is a scalable platform well suited to high-volume, cost-sensitive, and space-constrained applications—RF transceivers, power management ICs, and the application processors in modern smartphones. It is also attractive where high I/O density and fine pitch are required, because fan-out routing spreads connections across the reconstituted wafer rather than confining them to a die's perimeter. The same source notes the industry is advancing from FOWLP to fan-out panel-level packaging (FO-PLP) to further drive down costs and improve manufacturing efficiency—a scaling path that panel formats extend without changing the substrate-less principle.
HBM vs. FOWLP: A Comparative Framework for AI Accelerator Design
The comparison below distinguishes the two technologies by their actual roles: HBM as a component that must be integrated by some platform, and FOWLP as one candidate platform for that integration. Read it as a constraint-matching tool—if your design bottleneck is memory bandwidth, the left column dominates; if it is cost, profile, and I/O flexibility, the right column does.
| Dimension | High-Bandwidth Memory (HBM) | Fan-Out Wafer-Level Packaging (FOWLP) |
|---|---|---|
| Primary function | 3D-stacked memory component delivering the bandwidth AI workloads require | Integration platform for heterogeneous dies within a single package |
| Integration method | Vertical DRAM-die stack with TSVs, placed beside the processor on a 2.5D silicon interposer whose fine wiring connects the two | Substrate-less packaging: die contacts the molding compound directly, with fan-out routing across the reconstituted wafer |
| Key benefit for AI | Massive data throughput from dramatically reduced data-travel distance | Cost-effectiveness, thinner profile, and flexibility for high I/O density and fine pitch |
| Primary challenge addressed | The memory bandwidth wall between processor and memory | Package cost, form factor, and interconnect routing constraints |
| Cost implication | Rather high fabrication cost for 2.5D silicon-interposer integration | Lower material cost by eliminating both laminate substrate and silicon interposer |
| Thermal management | Dense stacking increases interconnect density and mechanical stress within the package | Excellent thermal performance; the molding compound acts as an efficient heat spreader |
| Typical application context | Data-center AI accelerators and HPC devices where bandwidth is the binding constraint | High-volume, cost-sensitive, space-constrained products such as smartphone processors, RF transceivers, and PMICs |
The framework's practical output is a decision boundary, not a winner. When the design's paramount performance driver is memory bandwidth, an HBM-centric architecture is the evidence-supported choice, and the cost of the interposer is the price of that bandwidth. When the drivers are cost, package profile, and I/O flexibility across heterogeneous dies, FOWLP's substrate-less platform is the better-aligned approach.
System-Level Impact and Design Considerations
At the system level, the two technologies interact rather than compete. An HBM stack still needs an integration method to sit beside the processor—the silicon interposer is the conventional answer, and it is precisely the element FOWLP eliminates. That creates a genuine design question for architects: whether the bandwidth requirement justifies the interposer's fabrication cost, or whether a fan-out platform can carry the memory-to-processor interconnect at acceptable performance for the target segment.
Thermal behavior also diverges by architecture. FOWLP's molding compound spreads heat directly from the die, while HBM's stacked structure concentrates interconnect density and mechanical stress in the package—failure mechanisms the Thermo Fisher authors flag as central reliability concerns in 2.5D and 3D designs of the AI era. Applied Materials adds that as packages incorporate more chiplets, denser interconnects, and advanced bonding schemes, die warpage, fine-pitch wiring formation, and bonding precision become essential to scaling systems. These are the engineering risks a packaging decision buys into, and they scale with integration density.
Cost comparisons should stay relative rather than absolute: specific figures are proprietary and market-dependent, but the structural facts hold—interposers add material and fabrication cost, and substrate elimination removes it.
Strategic Packaging Decisions for Next-Gen AI Accelerators
System architects should evaluate HBM for designs where maximum memory bandwidth is the paramount performance driver, accepting higher integration costs and thermal complexity. Conversely, FOWLP should be considered for designs prioritizing cost-effectiveness, reduced form factor, and flexible heterogeneous integration across a broader range of AI applications. The two are complementary: HBM defines what the memory system can deliver, and the integration platform defines what delivering it costs.
The measurable indicator to watch is the selection of HBM or FOWLP in new AI accelerator product announcements, indicated by product specifications detailing memory bandwidth, package dimensions, and target market segments. Each new specification sheet is a public record of which constraint the design team judged binding—and whether the bandwidth wall or the cost of crossing it won the argument.
